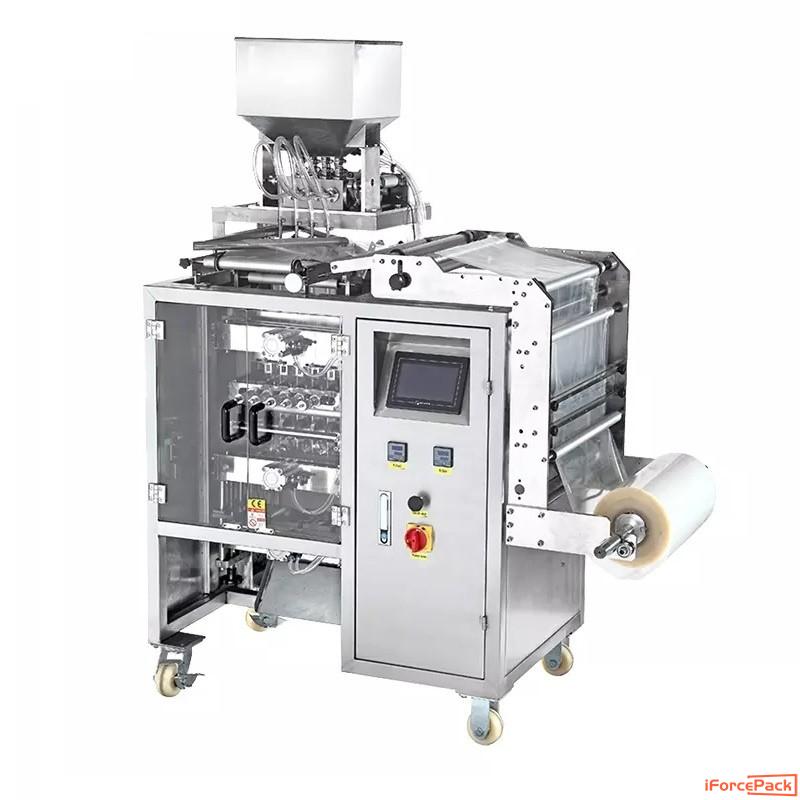

Automatic 4 lanes 4 side seal bag vertical packaging machine

Automatic 4 lanes 4 side seal bag vertical packaging machine

Model:IF-480-4Y

Lane number:4 lanes

Capacity:About 25--40 bags/min/lane, basic on the product

Measuring method:Measuring pump

Measuring range:1-70ml  per bag

Bags size:Length: 45--120 mm Width:35--120 mm

Film width:Max.480mm/4 lanes

Film thickness:0.04--0.10mm

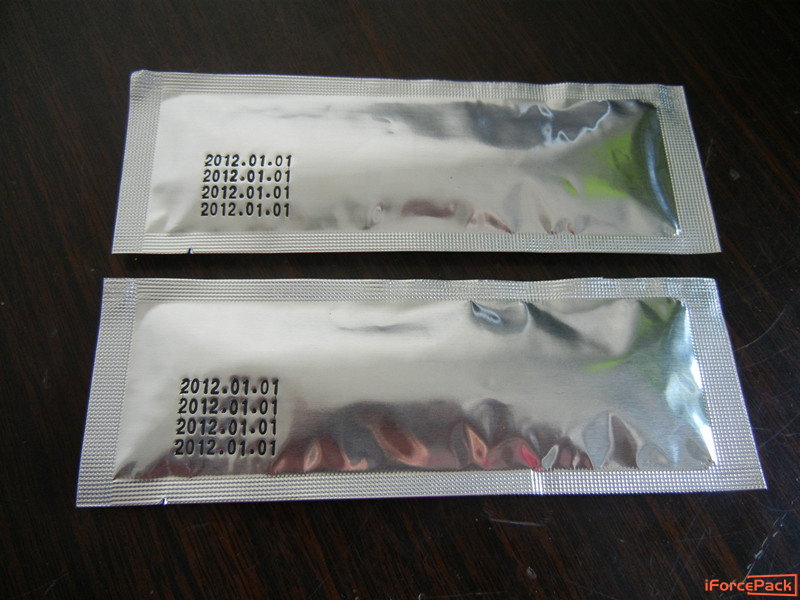

Sealing type:4 side sealing

Cutting type:Flat cutting or Zig-zag cutting (please noted before order)

Printer type:Ribbon stamp printer or Hot stamping date coder  (please noted before order)

Film material:Laminated film,like PET/PE,OPP/PE,NY/PE,PET/AL/PE.etc.

Air consumption:0.8Mpa  0.8m3/min

Power source:1N+PE/50HZ/AC220V(380V)/2.8KW  (please noted before order)

Dimension:L1385mm*W918mm*H2005mm

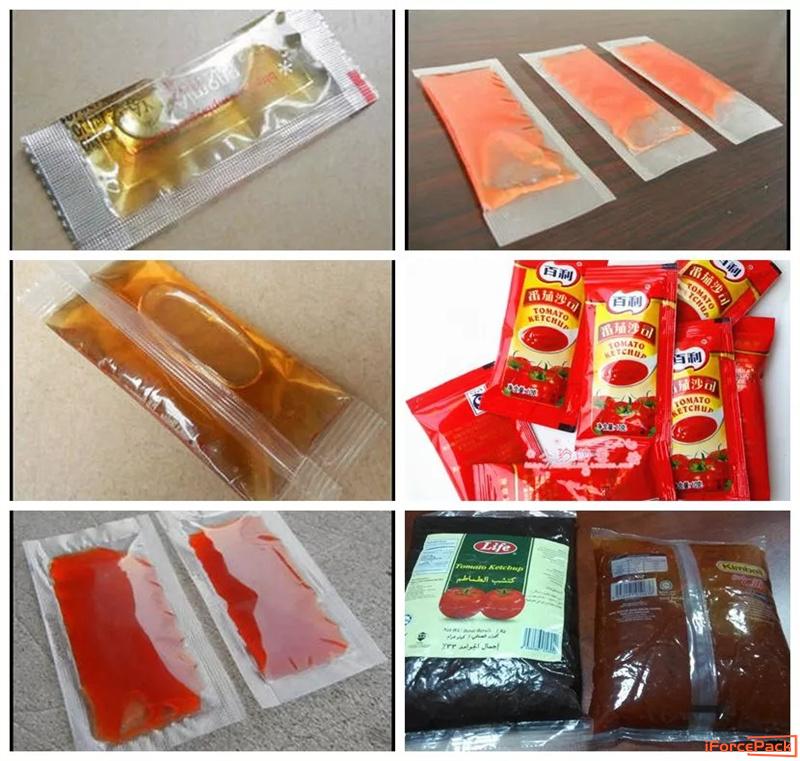

machine is widely used in pharmaceutical, food and chemical industry.It Automatic 4 edge seal bag 4 lanes packing machine is suitable for packing all kinds of liquid material, like sauce,paste,ketchup,etc.
