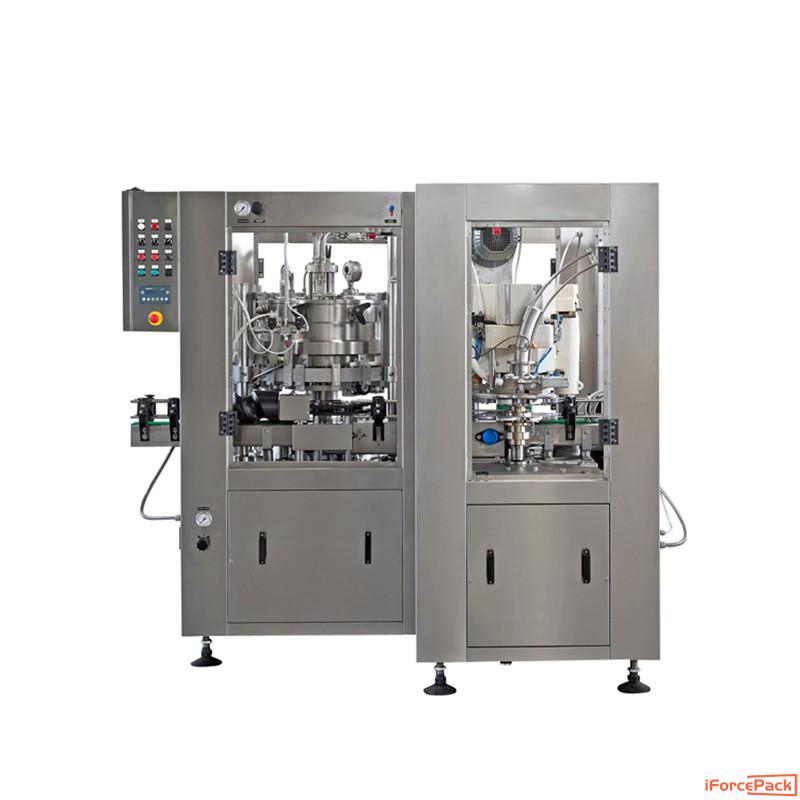

Automatic beverage carbon drink tin can bottle filling seaming machine

Automatic beverage carbon drink tin can bottle filling seaming machine

Model:IF-12-4-BF

Product name:full automatic beer filling machine for can tin

filling heads:12 heads

sealing heads:4 heads

filling range:250ml~2000ml

suitable cans height:100~360mm

suitable cans diameter:20~200mm

dimension(L*W*H):2500*2000*2200mm

voltage:3 phase 220V/380V

power:5kw

machine weight:2000kg

Carbon dioxide is poured into the tank to remove the air in the tank. The filling is not frozen, and the liquid level is accurate. The contact parts with materials are made of 304 materials, which meet the requirements of food grade. The filling cylinder is equipped with a liquid level sensor and an external pneumatic diaphragm valve, which can control the liquid level of the cylinder well and avoid boiling.

The sealing part has two pressing covers for the sealing wheel, two folding edges, and the sealing is tight and graceful, without damaging the cover. There is photoelectric detection on the cover road. If the cover is less than 100, it will fall off automatically to avoid the waste of easy-to-pull cans.
