Automatic nylon pyramid bag mixed tea material vertical packing machine

Automatic nylon pyramid bag mixed tea material vertical packing machine

Model:IF-T160

Working speed:40-60 bags/min

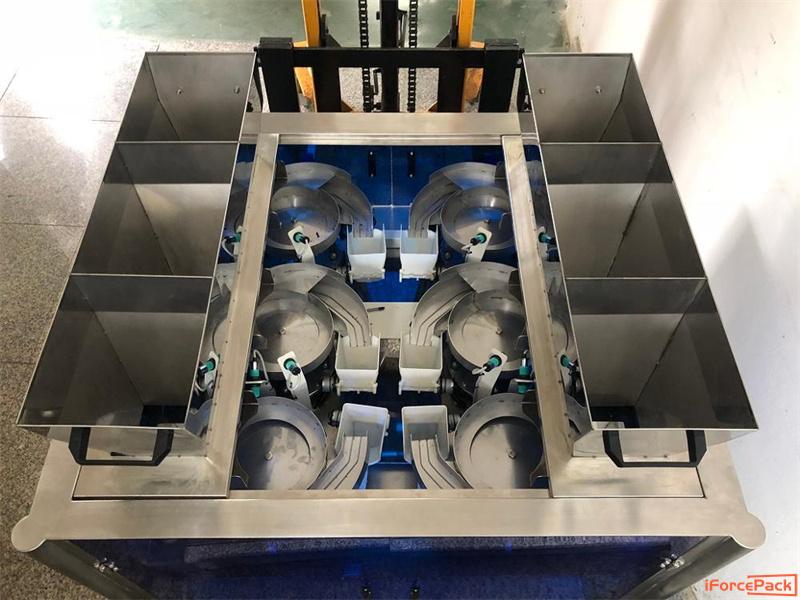

Filling system:4 or 6 Vibrator feeder bowl

Sealing mode:three-dimensional sealing

Bag size:Length: 60-80(W)*40-80(L)mm

Packing Film:120mm , 140mm, 160mm

Bag type:Pyramid/Rectangular(Transfer through one button)

Air consumption:≥0.6Mpa  0.4m3/min

Sealing method:Ultrasonic sealing

Filling range:2-10g/bag

Power:110/220V  Single phase  50/60Hz 2.2KW

Weight:440kg

Overall dimensions:1120 * 870 * 1810mm

Specially designed for packing pyramid tea bag, dip tea bag with string and tag.

Filling material can be various tea leaves, flower tea, herbal tea, fruit tea, blended tea etc.

The electronic scale is applicable to the packaging of green tea, black tea, black tea, oolong tea, yellow tea, white tea, flower tea, formula tea, health tea, health tea, Chinese herbal tea, coffee, and other bag-type drinks.

Rotary type is suitable for: packaging of bitter tea, broken tea, Chinese herbal tea, food, small particles, coarse powder or similar traits.
