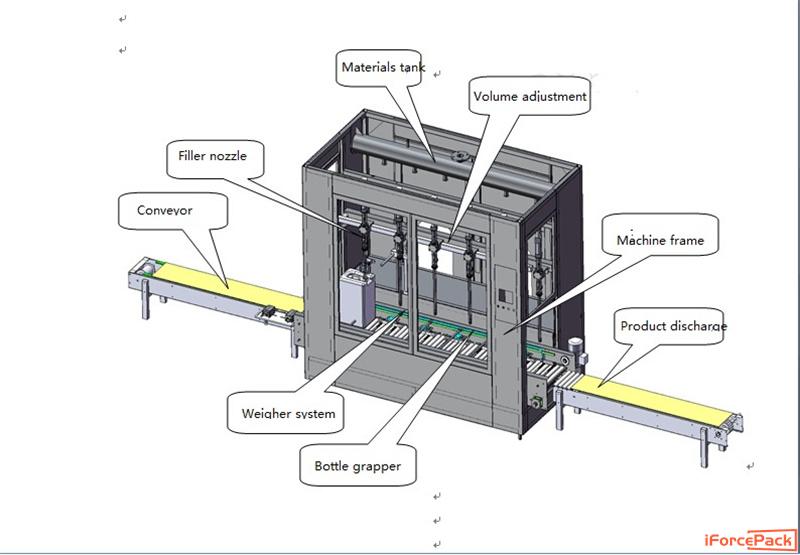

Automatic oil cream bucket 6 nozzles weighing filling machine

Model:IF-BF06T
Applicable bottle range: minimum 140×200×320mm maximum 260×290×500mmm
Filling capacity: 5-30Kg
Filling speed: ≤300 barrels / hour
Filling accuracy: ±0.2%
Feed port pressure: <0.6Mpa
Air source pressure: 0.6-0.8Mpa
Air consumption: 200 l / min
Power, power: AC220, 2200W
Weight: about 600kg
Dimensions: 2900mm (length) × 1350mm (width) × 2300mm (height)

Automatic oil cream bucket 6 nozzles weighing filling machine

Model:IF-BF06T

Applicable bottle range: minimum 140×200×320mm maximum 260×290×500mmm

Filling capacity: 5-30Kg

Filling speed: ≤300 barrels / hour

Filling accuracy: ±0.2%

Feed port pressure: <0.6Mpa

Air source pressure: 0.6-0.8Mpa

Air consumption: 200 l / min

Power, power: AC220, 2200W

Weight: about 600kg

Dimensions: 2900mm (length) × 1350mm (width) × 2300mm (height)
