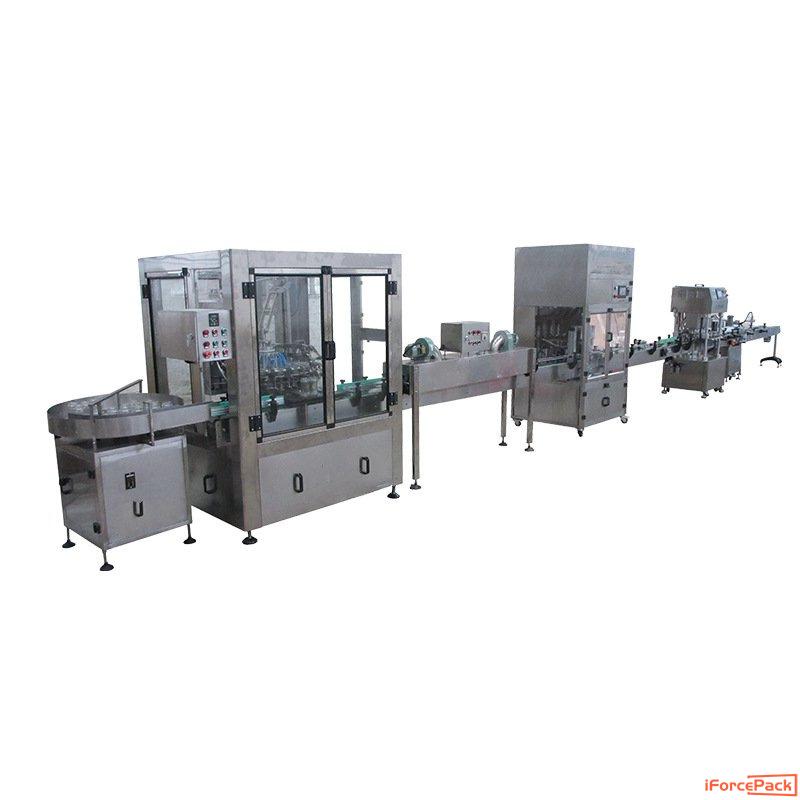

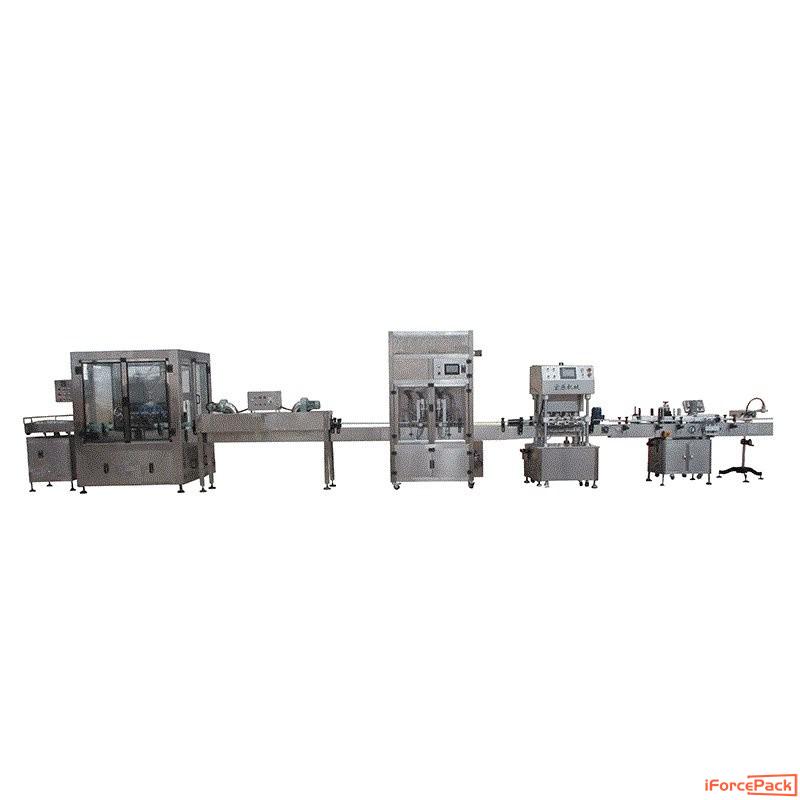

Automatic paste jar bottle washing filling vacuum capping labeling machine
Model:IF
Voltage: 220V50 / 60Hz
Power: 10KW (dryer 7kw)
Air source: 0.5-0.7MPa
Filling range: 20-500ml
Buffal machine disk diameter: diameter 800mm
Flip-type bottle washing header: 16 heads
Dryer tunnel length: 1800mm
Filling head: 4 heads
True number of vacuum hinges: 4 heads
Bottle cap diameter: according to the bottle
The whole line length: 18 meters
Heavy House: 2400kg
Size: 18000 x1800 x2300 (mm)
Packing: wooden box packaging shipment
Production speed: 1500-2000 bottles / hour (can be customized according to production capacity)
Automatic paste jar bottle washing filling vacuum capping labeling machine
Model:IF
Voltage: 220V50 / 60Hz
Power: 10KW (dryer 7kw)
Air source: 0.5-0.7MPa
Filling range: 20-500ml
Buffal machine disk diameter: diameter 800mm
Flip-type bottle washing header: 16 heads
Dryer tunnel length: 1800mm
Filling head: 4 heads
True number of vacuum hinges: 4 heads
Bottle cap diameter: according to the bottle
The whole line length: 18 meters
Heavy House: 2400kg
Size: 18000 x1800 x2300 (mm)
Packing: wooden box packaging shipment
Production speed: 1500-2000 bottles / hour (can be customized according to production capacity)

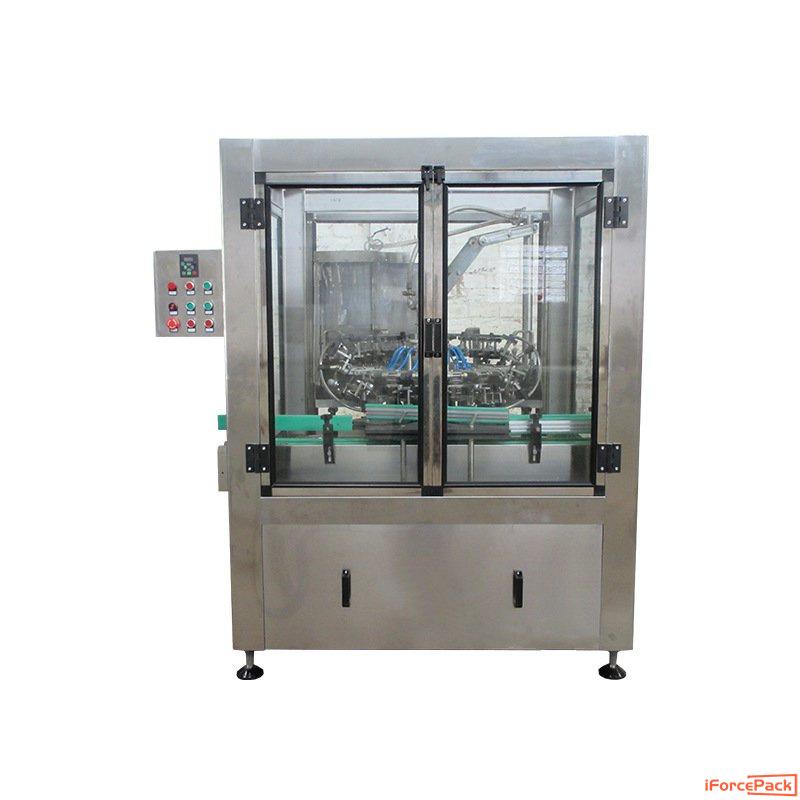

Bottle washing machine:

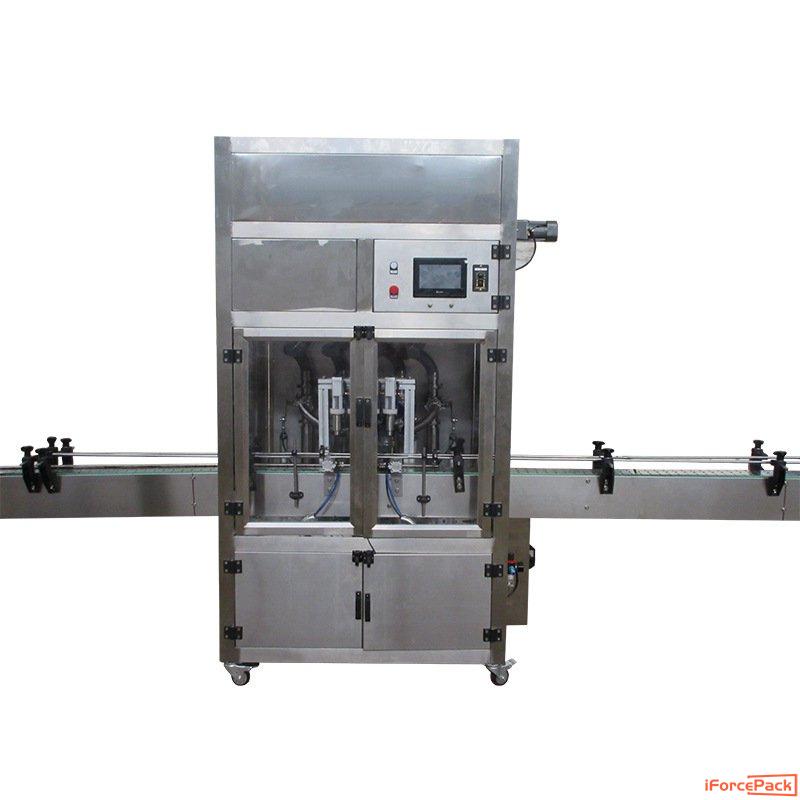

Filling machine

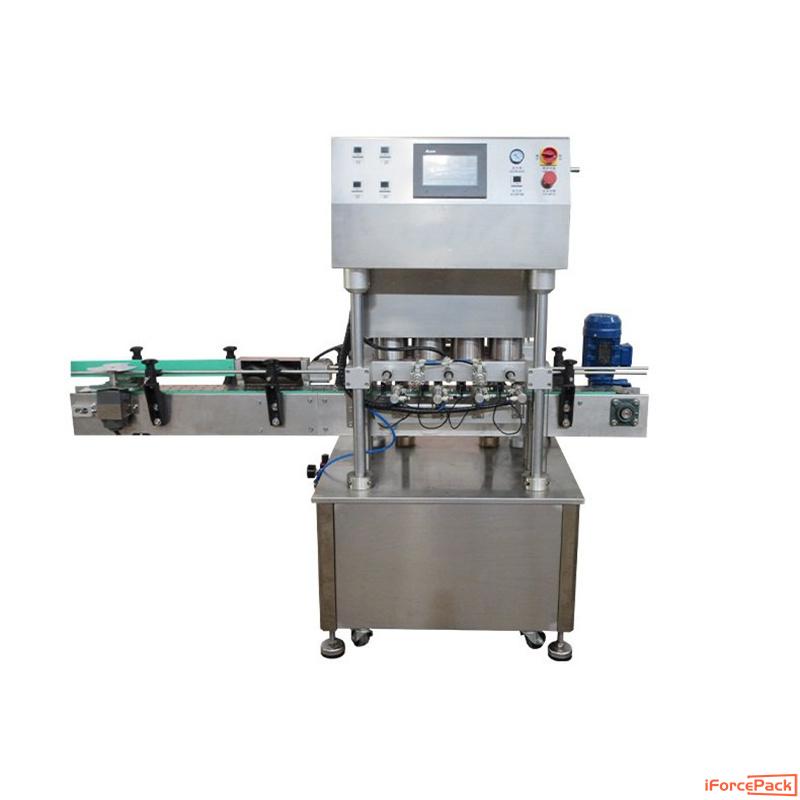

Vacuum capping machine

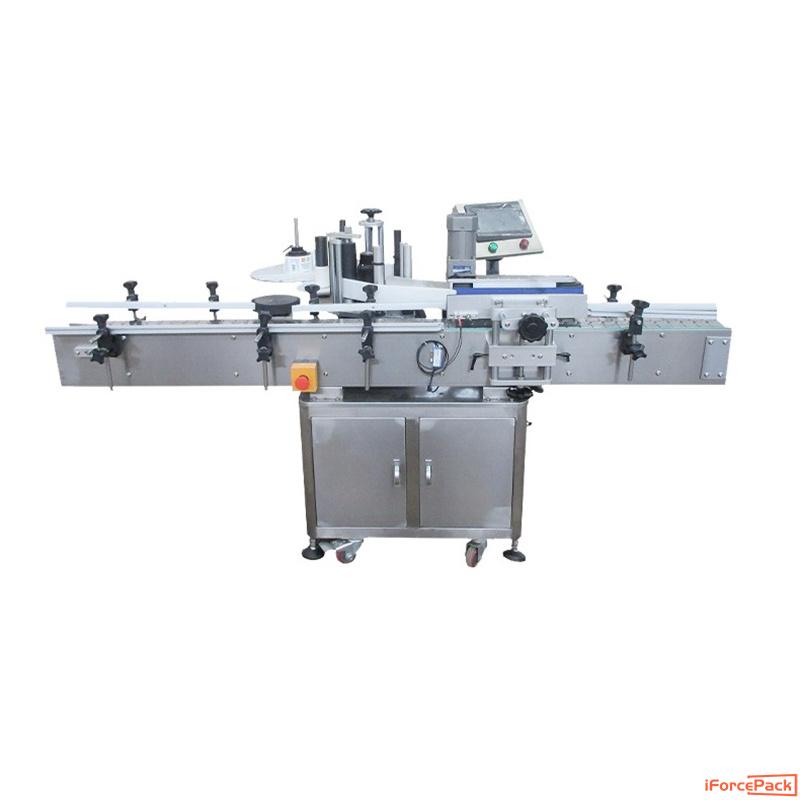

Labeling machine
Sample products:
