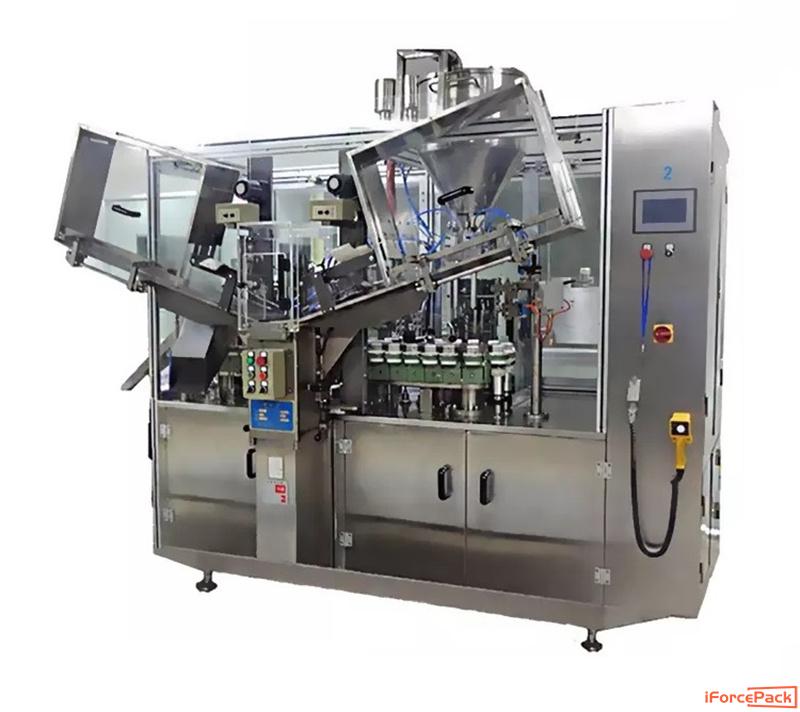

Automatic rotary 2 heads soft tube filling heat sealing machine

Automatic rotary 2 heads soft tube filling heat sealing machine

Model:IF-160

Parameters:Number Reference

Item:Plastic Tube,laminated plastic tube

Sealing Type:Heating Sealing

Max Power:4KW

Voltage:380V 50Hz

Productivity:120-150pcs/min

Filling Volume:5-250g (change pump)

Tube Diameter:10-50mm (change molds)

Air Consumption:20m3/h

Air Pressure:0.6-0.8Mpa

Dimension (L*W*H):3147*1555*2267mm

Weight:About 3800KG

Main Motor:1.5KW

Hot Air Generator:6KW

Water Chiller:1.5KW

Double station tube filling sealing machine is widely used in daily chemical products, medical products, food, chemicals, cosmetics, toothpaste and other industries.

Fully automatic tube packing lineis suitable for filling all kinds of pasty and viscous fluid and the materials alike, into plastic and laminated tubes and then internally heating tubes, sealing and printing lot number or production date. It is used in the industries of pharmaceutics, foodstuffs, cosmetic and daily chemicals.

With touch screen and PLC control system employed, convenient, visualized and reliable non-touch operation of the machine is effected of compact design and auto tube feed. Driving part is fully-closed. Full steps of tube feeding, marking identification, filling, hot air sealing, code printing, trimming and ejecting out the tube are conducted by automatic system. Tube feeding is conducted pneumatically, accurately and reliably.

Work Process:

Put tubes on tube loading box→tube feeding and locating→tube orientate automatically→tube filling automatically→ultrasonic tube sealing→tube end cutting automatically→tube eject out automatically.
