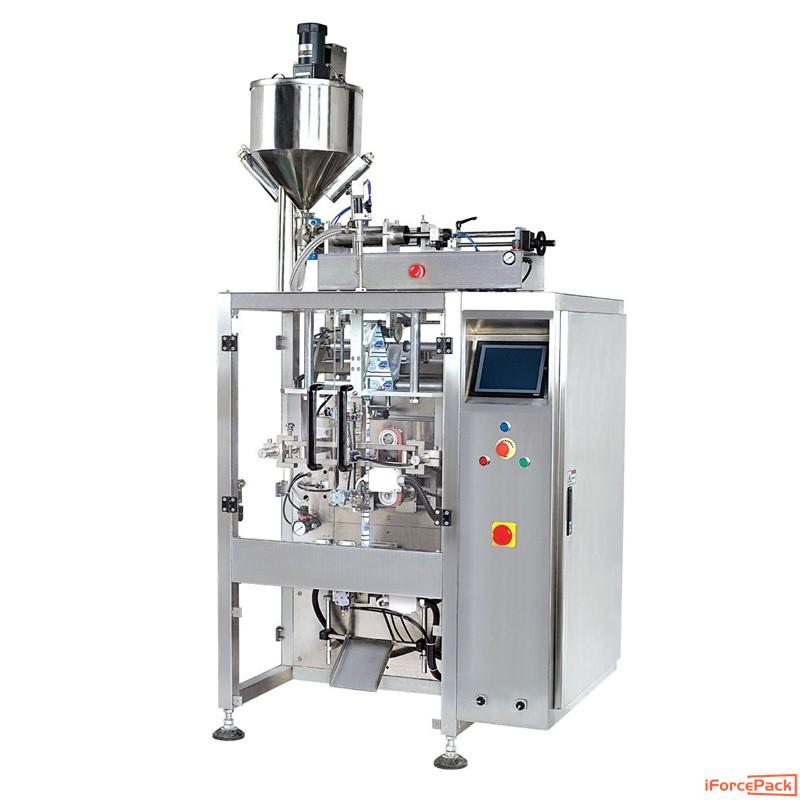

Automatic sauce oil bag packaging machine with mix and heat hopper

Automatic sauce oil bag packaging machine with mix and heat hopper

Tech Parameter

Model

IF-420

IF-520

IF-720

Film width

max 420mm

max 520mm

max 720mm

Bag length

max 300mm

max 400mm

max 500mm

Bag width

60-200mm

80-250mm

180-350mm

Packaging Rate

5-60bags/min

5-60bags/min

5-50bags/min

Measurement Range

150-1500ml

2000ml

4000ml

Film Thickness

0.04-0.08mm

0.04-0.12mm

0.04-0.12mm

Power

220V 50/60Hz 2KW

220V 50/60Hz 3KW

220V 50/60Hz 4KW

Machine Size

(L)1217*(W)1015*(H)1343mm

(L)1488*(W)1080*(H)1490mm

(L)1780*(W)1350*(H)2050mm

Machine Quality

About 650KG

About 680KG

About750KG

Optional device

Date coder, Hole punching device (Pinhole,Round hole, The butterfly hole), Linking bag control device, Airfilling device, Air exhaust device. Tear notch device, Nitrogen inflation device, Gusset bag
