Model:IF-C158
Production Capacity:10000-30000 (Pills/Hour )
Motor power:0.55KW
Power supply:220V/50HZ
The max forming area and depth:134mm×70mm×14mm
PVC:Length: 65-70mm, thickness: 0.025mm
PTP:Length: 65-70mm, thickness: 0.02mm
PVC hard piece: width: 65-90 mm, thickness: 0.25-0.30 mm
Bore diameter of roll shaft: 60-70 mm
PTP aluminum foil: width: 65-70 mm, thickness: 0.02-0.025 mm
Bore diameter of roll shaft: 60-70 mm
Inside diameter of wrapper roll:70-76mm
Air Compressed:0.4Mpa
Packing width:(Max width) 160 mm
Weight: 420kg
Overall Dimension:
(L×W×H)1260×850×1700mm (Vibration type)
(L×W×H)1280×850×1350mm (Rotary type)

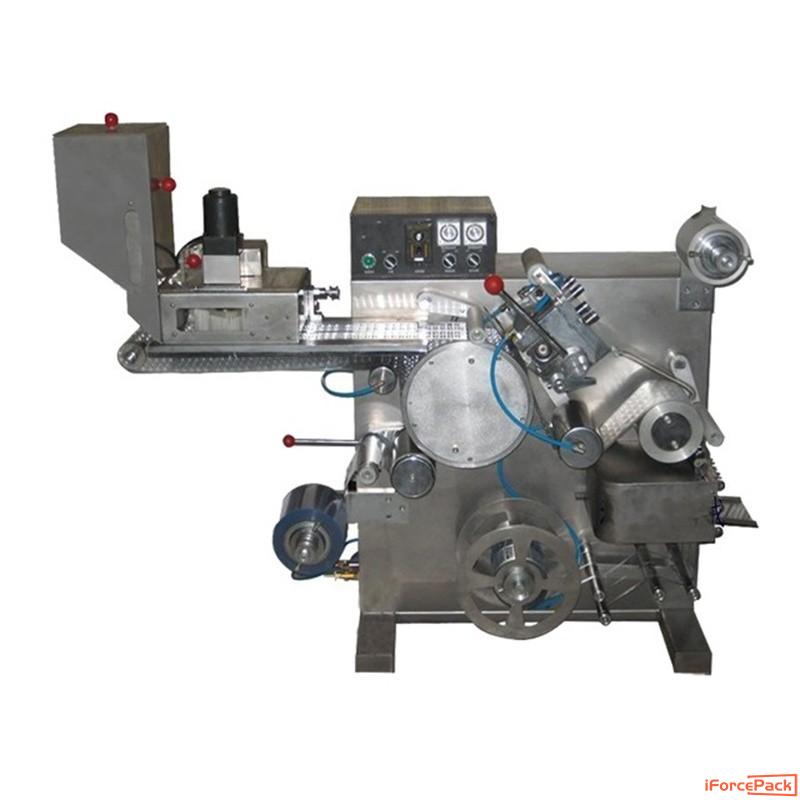

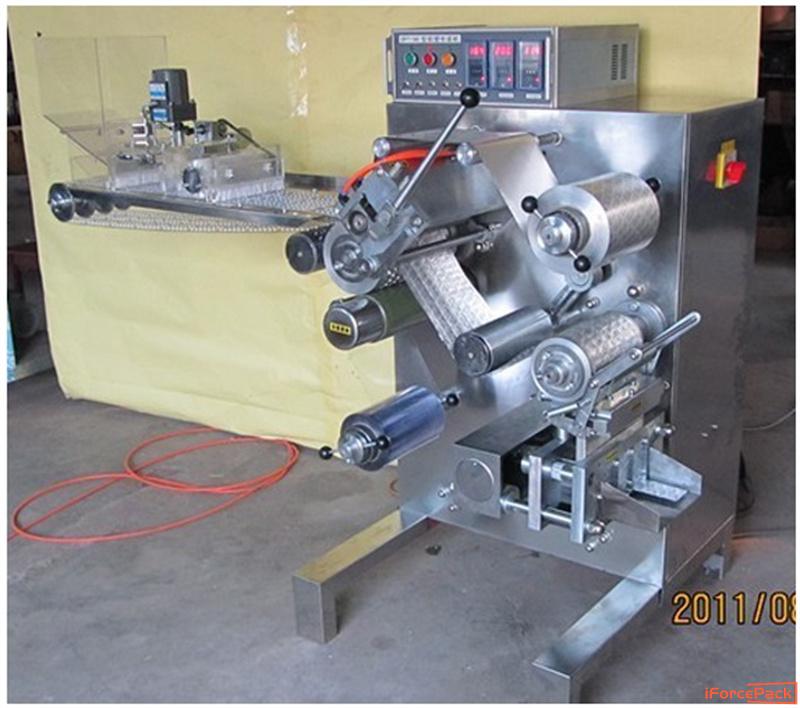

Automatic tablet capsule strip aluminum blister packaging machine
Model:GR-C158
Production Capacity:10000-30000 (Pills/Hour )
Motor power:0.55KW
Power supply:220V/50HZ
The max forming area and depth:134mm×70mm×14mm
PVC:Length: 65-70mm, thickness: 0.025mm
PTP:Length: 65-70mm, thickness: 0.02mm
PVC hard piece: width: 65-90 mm, thickness: 0.25-0.30 mm
Bore diameter of roll shaft: 60-70 mm
PTP aluminum foil: width: 65-70 mm, thickness: 0.02-0.025 mm
Bore diameter of roll shaft: 60-70 mm
Inside diameter of wrapper roll:70-76mm
Air Compressed:0.4Mpa
Packing width:(Max width) 160 mm
Weight:420kg
Overall Dimension:
(L×W×H)1260×850×1700mm (Vibration type)
(L×W×H)1280×850×1350mm (Rotary type)
