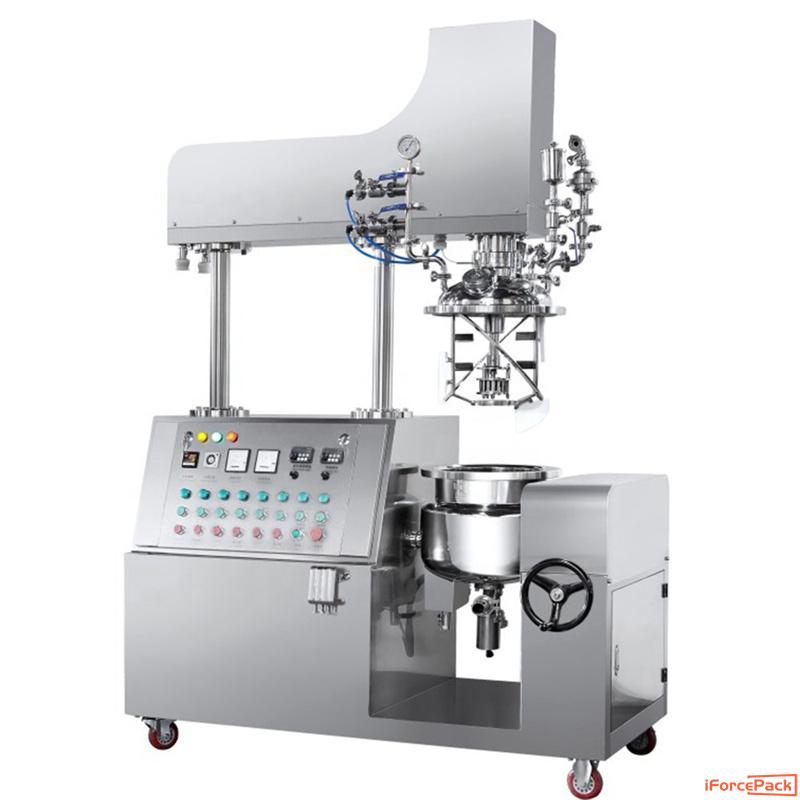

50L vacuum homogenizing emulsifying mixing tank

Main pot:50L
working capacity :50L.
Wall scraping power of main pot 0.75kw
Homogenizer power :1.1kw
Homogenizer speed:0-6000 r/min
Water and oil pot power :0.18kw
Snorkels power:0.75kw
Vaccum pump power:0.25kw
Heating power:2 kw
Stirring power :0.25kw
Stirring speed:r/min:? 0--86
Working pressure:-1 to0.25bar
Working temperature max: 150degree
Stirring speed:r/min:?0--86
Dimension:1500*600*1900-2500mm
Weight:650kg

Main pot:50L

working capacity :50L.

Wall scraping power of main pot 0.75kw

Homogenizer power :1.1kw

Homogenizer speed:0-6000 r/min

Water and oil pot power :0.18kw

Snorkels power:0.75kw

Vaccum pump power:0.25kw

Heating power:2 kw

Stirring power :0.25kw

Stirring speed:r/min:? 0--86

Working pressure:-1 to0.25bar

Working temperature max: 150degree

Stirring speed:r/min:?0--86

Dimension:1500*600*1900-2500mm

Weight:650kg

Heating:electric heating / steam heating

Application: Toothpaste, Cosmetic, Food, Cheese, Mozzarella, Mayonnaise etc cream or high viscosity material.

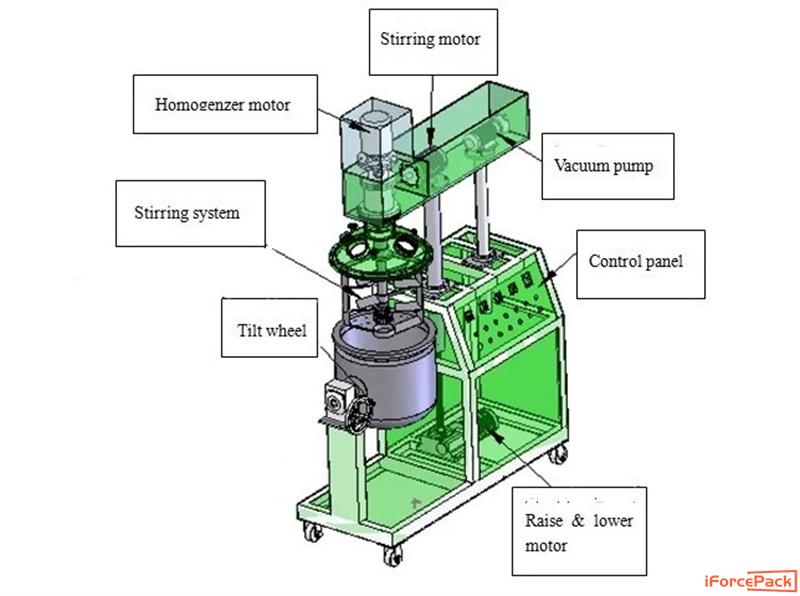

50L vacuum homogenizer mixer consists of vacuum homogeneous emulsifying machine, heating system, mixing system, vacuum system, electric lifting system, operation control cabinet, piping system(oil pot and water pot optional).
